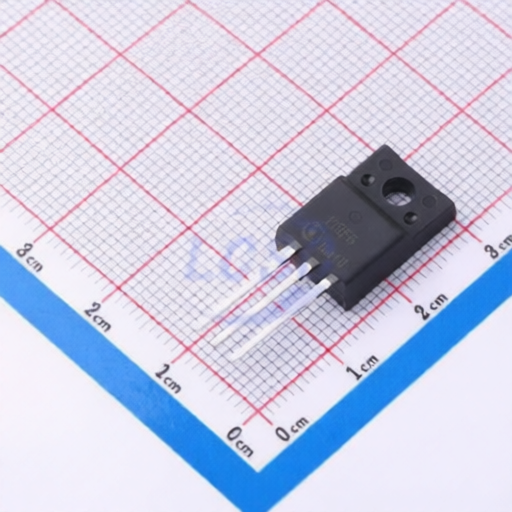

Infineon IKA15N65F5
Manufacturer:
Infineon
Mfr. Part #:
IKA15N65F5
Package:
TO-220FP-3
Customer #:
Key Attributes:
High speed 5 FAST IGBT in TRENCHSTOP 5 technology copacked with RAPID 1 fast and soft antiparallel diode
Description:
33.3W 650V TO-220FP-3 Single IGBTs RoHS
Datasheet:
Infineon IKA15N65F5
Products Specifications
Manufacturer:
Package:
TO-220FP-3
Pd - Power Dissipation:
33.3W
Td(off):
150ns
Td(on):
17ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
4pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@0.15mA
Gate Charge(Qg):
38nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
50ns
Switching Energy(Eoff):
40uJ
Turn-On Energy (Eon):
130uJ
Input Capacitance(Cies):
930pF
Pulsed Current- Forward(Ifm):
45A
Output Capacitance(Coes):
24pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
