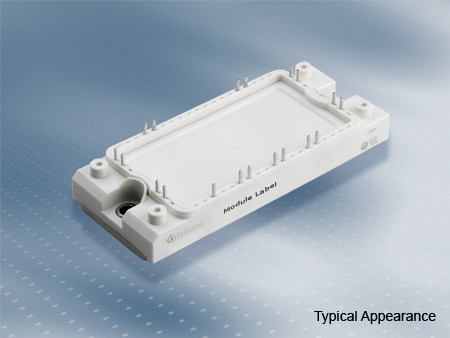

Infineon FS75R12KT4B15
Manufacturer:
Infineon
Mfr. Part #:
FS75R12KT4B15
Package:
Through Hole,107.5x45mm
Customer #:
Description:
IGBT FS (Field Stop) 1.2kV 75A 385W Through Hole,107.5x45mm
Datasheet:
Infineon FS75R12KT4B15
Products Specifications
Manufacturer:
Package:
Through Hole,107.5x45mm
Td(off):
300ns
Pd - Power Dissipation:
385W
Td(on):
130ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
4.3nF@25V
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@2.4mA
Operating Temperature:
-40℃~+150℃
Switching Energy(Eoff):
3.9mJ
Turn-On Energy (Eon):
4.7mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
