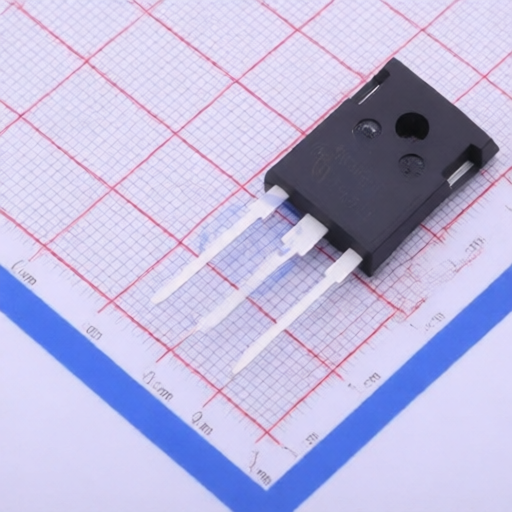

Infineon IKW50N60H3
Manufacturer:
Infineon
Mfr. Part #:
IKW50N60H3
Package:
TO-247-3
Customer #:
Key Attributes:
High speed IGBT in Trench and Fieldstop technology, 600V high speed switching series third generation
Description:
333W 600V FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IKW50N60H3
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
333W
Td(off):
235ns
Td(on):
23ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
96pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.1V@0.8mA
Gate Charge(Qg):
315nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
130ns
Switching Energy(Eoff):
910uJ
Turn-On Energy (Eon):
1.45mJ
Input Capacitance(Cies):
2.96nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
116pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Infineon
9502 Products
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
