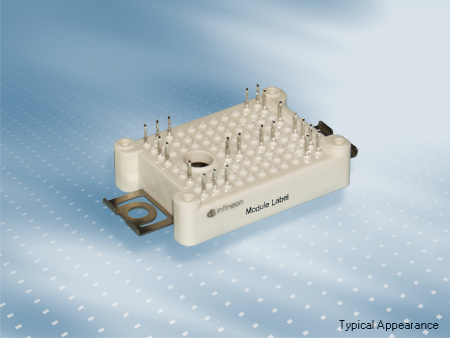

Infineon FS25R12W1T4_B11
Manufacturer:
Infineon
Mfr. Part #:
FS25R12W1T4_B11
Package:
Through Hole,62.8x33.8mm
Customer #:
Description:
205W 1.2kV FS (Field Stop) Through Hole,62.8x33.8mm Single IGBTs RoHS
Datasheet:
Infineon FS25R12W1T4_B11
Products Specifications
Manufacturer:
Package:
Through Hole,62.8x33.8mm
Td(off):
180ns
Pd - Power Dissipation:
205W
Td(on):
50ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.05nF
Input Capacitance(Cies):
1.45nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@0.8mA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
0.2uC
Pulsed Current- Forward(Ifm):
50A
Switching Energy(Eoff):
2.2mJ
Turn-On Energy (Eon):
2.9mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
