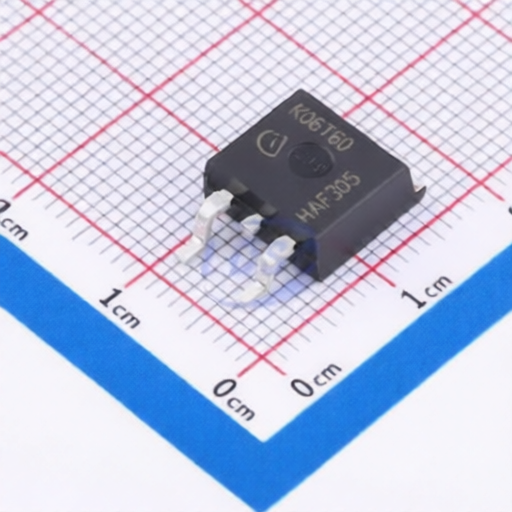

Infineon IKB06N60T
Manufacturer:
Infineon
Mfr. Part #:
IKB06N60T
Package:
TO-263-3
Customer #:
Key Attributes:
Low Loss DuoPack: IGBT in TRENCHSTOPTM and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled HE diode
Description:
88W 600V FS (Field Stop) TO-263-3 Single IGBTs RoHS
Datasheet:
Infineon IKB06N60T
Products Specifications
Manufacturer:
Package:
TO-263-3
Pd - Power Dissipation:
88W
Td(off):
130ns
Td(on):
9ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
11pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.1V@0.18mA
Gate Charge(Qg):
42nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
123ns
Switching Energy(Eoff):
110uJ
Turn-On Energy (Eon):
90uJ
Input Capacitance(Cies):
368pF
Pulsed Current- Forward(Ifm):
18A
Output Capacitance(Coes):
28pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
