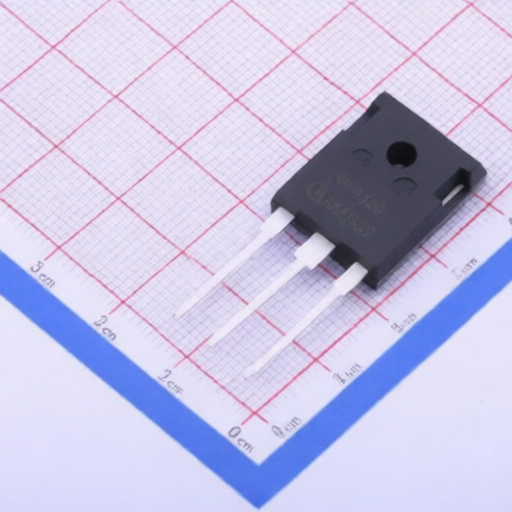

Infineon IKW08T120
Manufacturer:
Infineon
Mfr. Part #:
IKW08T120
Package:
TO-247-3
Customer #:
Description:
70W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IKW08T120
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
70W
Td(off):
450ns
Td(on):
40ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
28pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@0.3mA
Gate Charge(Qg):
53nC@15V
Operating Temperature:
-40℃~+150℃
Reverse Recovery Time(trr):
80ns
Switching Energy(Eoff):
700uJ
Turn-On Energy (Eon):
670uJ
Input Capacitance(Cies):
600pF
Pulsed Current- Forward(Ifm):
24A
Output Capacitance(Coes):
36pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
