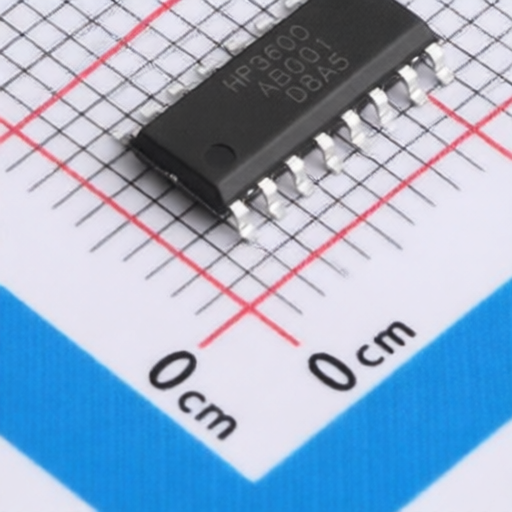

Hynetek HP3600-AB001-SP16R
Manufacturer:
Hynetek
Asian Brands
Mfr. Part #:
HP3600-AB001-SP16R
Package:
SOP-16
Customer #:
Key Attributes:
Dual Channel Isolated Gate-Driver ICs
Description:
4A 15ns 10ns 6A SOP-16 Isolators - Gate Drivers
Datasheet:
Hynetek HP3600-AB001-SP16R
Products Specifications
Category:
Manufacturer:
Package:
SOP-16
Driven Configuration:
High Side;Low Side
Operating Temperature:
-40℃~+150℃@(Tj)
Isolation voltage(Vrms):
3000
Load Type:
MOSFET
Current - Output High(IOH):
4A
Quiescent Current(Iq):
2000uA
Rise Time:
15ns
Voltage - Supply:
3.5V~30V;3V~18V
Fall Time:
10ns
CMTI(kV/us):
150kV/us
Number of Channels:
2
Current - Output Low(IOL):
6A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hynetek
14 Products
Shenzhen Hynetek Semiconductor Technology Co., Ltd.
(hereinafter referred to as "Hynetek") is a company focusing on smart energy control technology. It mainly provides high-performance digital-analog hybrid chip products in the fields of smart fast charging and digital energy. The company is headquartered in Qianhai, Shenzhen, and has R&D centers in Shanghai and Hangzhou, Zhejiang. At present, Hynetek has developed and mass-produced a number of products around the USB Type-C ecological chain product layout, such as a multi-series PD Source protocol chip on the power supply side, Type-C port controller, USB eMarker on the cable side, etc. Hynetek is committed to improving energy efficiency through research on energy control technology. With its own technical R&D advantages, Hynetek develops digital power control chips, high-voltage driver chips, power conversion chips and modules for industrial applications such as ICT (communication servers), data centers, photovoltaic inverters, and e
