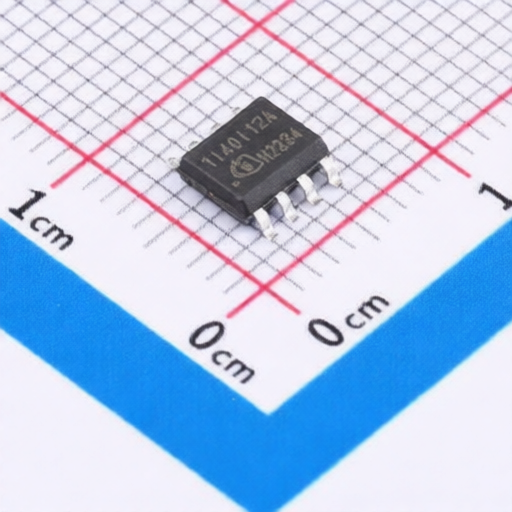

Infineon 1EDI40I12AF
Manufacturer:
Infineon
Mfr. Part #:
1EDI40I12AF
Package:
DSO-8
Customer #:
Key Attributes:
Single Channel IGBT Gate Driver IC
Description:
Gate Driver IC IGBT DSO-8
Datasheet:
Infineon 1EDI40I12AF
Products Specifications
Category:
Manufacturer:
Package:
DSO-8
Operating Temperature:
-40℃~+125℃
Propagation Delay(tpd):
300ns;300ns
Load Type:
IGBT
Current - Output High(IOH):
7.5A
Quiescent Current(Iq):
650uA
Voltage - Supply:
3.1V~17V
Rise Time:
5ns
Fall Time:
4ns
Number of Channels:
1
Current - Output Low(IOL):
6.8A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
