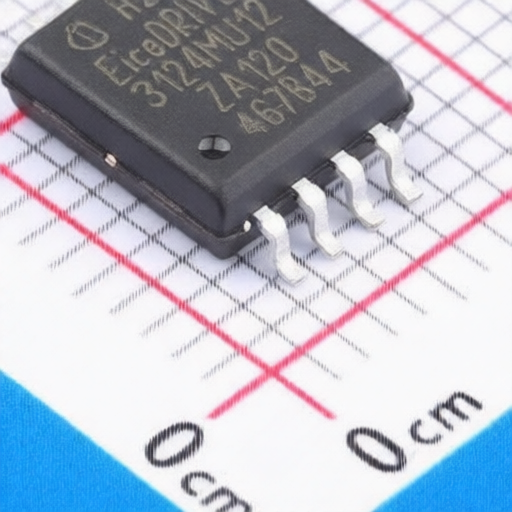

Infineon 1ED3124MU12HXUMA1
Manufacturer:
Infineon
Mfr. Part #:
1ED3124MU12HXUMA1
Package:
DSO-8
Customer #:
Key Attributes:
Single-channel isolated gate driver IC with active Miller clamp or separate output
Description:
Half-Bridge 14A 10V~35V 15ns 15ns 14A DSO-8 Isolators - Gate Drivers RoHS
Datasheet:
Infineon 1ED3124MU12HXUMA1
Products Specifications
Category:
Manufacturer:
Package:
DSO-8
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+125℃
Propagation Delay(tpd):
90ns;90ns
Load Type:
MOSFET;IGBT
Input Logic Level - High:
2.5V
Current - Output High(IOH):
14A
Quiescent Current(Iq):
1.1mA
Voltage - Supply:
10V~35V
Rise Time:
15ns
Fall Time:
15ns
Number of Channels:
1
Current - Output Low(IOL):
14A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Infineon
9502 Products
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
