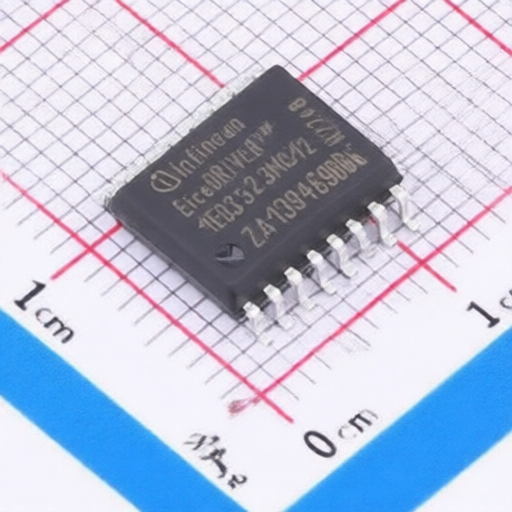

Infineon 1ED3323MC12NXUMA1
Manufacturer:
Infineon
Mfr. Part #:
1ED3323MC12NXUMA1
Package:
SOIC-16
Customer #:
Key Attributes:
Single-channel 5.7kV(rms) isolated gate driver IC with DESAT and soft-off
Description:
6A 12V~35V 10ns 10ns 8.5A SOIC-16 Isolators - Gate Drivers RoHS
Datasheet:
Infineon 1ED3323MC12NXUMA1
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16
Operating Temperature:
-40℃~+125℃@(Ta)
Propagation Delay(tpd):
80ns;86ns
Load Type:
MOSFET;IGBT
Current - Output High(IOH):
6A
Quiescent Current(Iq):
1.1mA
Voltage - Supply:
12V~35V
Rise Time:
10ns
Fall Time:
10ns
Number of Channels:
1
Current - Output Low(IOL):
8.5A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
