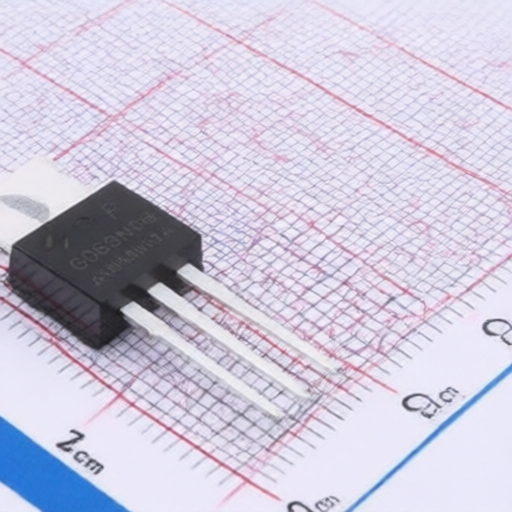

HUAYI HYG063N09NS1P
Manufacturer:
HUAYI
Mfr. Part #:
HYG063N09NS1P
Package:
TO-220FB-3L
Customer #:
Description:
N-Channel 90V 120A 187.5W Through Hole TO-220FB-3L
Datasheet:
HUAYI HYG063N09NS1P
Products Specifications
Manufacturer:
Package:
TO-220FB-3L
Drain to Source Voltage:
90V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+175℃
RDS(on):
5.5mΩ@10V,50A
Gate Threshold Voltage (Vgs(th)):
3V
Reverse Transfer Capacitance (Crss@Vds):
53pF@25V
Number:
1 N-channel
Input Capacitance(Ciss):
3.2nF
Pd - Power Dissipation:
187.5W
Gate Charge(Qg):
60nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
