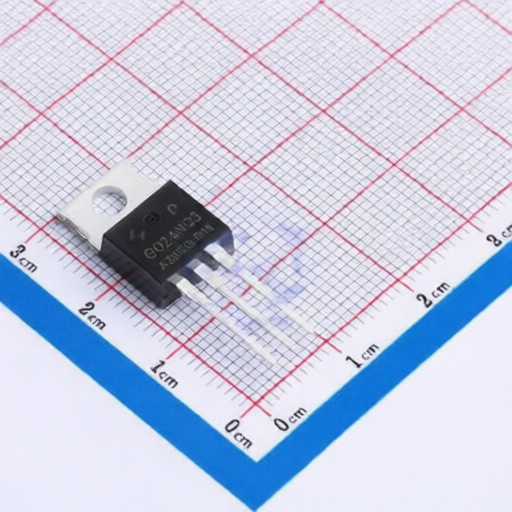

HUAYI HYG024N03LR1P
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG024N03LR1P
Package:
TO-220FB-3L
Customer #:
Description:
30V 160A 1V 1 N-channel 125W TO-220FB-3L Single FETs, MOSFETs RoHS
Datasheet:
HUAYI HYG024N03LR1P
Products Specifications
Manufacturer:
Package:
TO-220FB-3L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
160A
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
1V
Reverse Transfer Capacitance (Crss@Vds):
450pF@25V
Number:
1 N-channel
Pd - Power Dissipation:
125W
Input Capacitance(Ciss):
3.992nF
Gate Charge(Qg):
89.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 20 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
