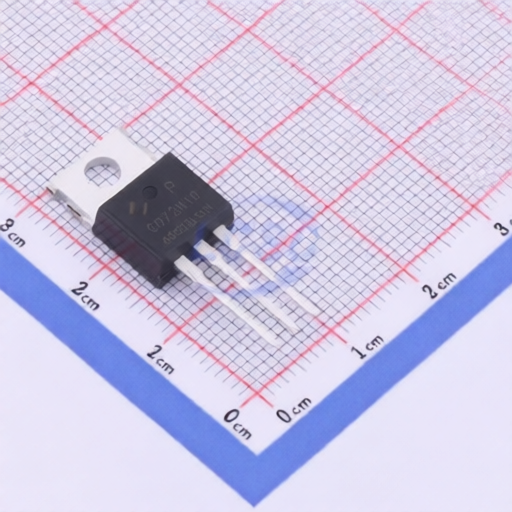

HUAYI HYG072N10LS1P
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG072N10LS1P
Package:
TO-220FB-3L
Customer #:
Key Attributes:
MOSFET N-CH 100V 80A TO-220FB-3L
Description:
N-Channel 100V 80A 104W Through Hole TO-220FB-3L
Datasheet:
HUAYI HYG072N10LS1P
Products Specifications
Manufacturer:
Package:
TO-220FB-3L
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+150℃
RDS(on):
6.7mΩ@10V,20A
Gate Threshold Voltage (Vgs(th)):
1.6V
Reverse Transfer Capacitance (Crss@Vds):
150pF@25V
Number:
1 N-channel
Pd - Power Dissipation:
104W
Input Capacitance(Ciss):
3.07nF
Gate Charge(Qg):
54.3nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
