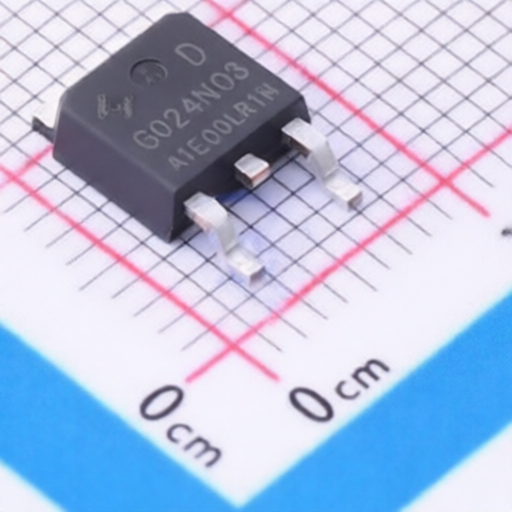

HUAYI HYG024N03LR1D
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG024N03LR1D
Package:
TO-252-2L
Customer #:
Key Attributes:
MOSFET N-CH 30V 100A TO-252-2L
Description:
N-Channel 30V 100A 57W Surface Mount TO-252-2L
Datasheet:
HUAYI HYG024N03LR1D
Products Specifications
Manufacturer:
Package:
TO-252-2L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
100A
RDS(on):
3.6mΩ@4.5V
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
441pF
Number:
1 N-channel
Output Capacitance(Coss):
567pF
Pd - Power Dissipation:
57W
Input Capacitance(Ciss):
3.918nF
Gate Charge(Qg):
86.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
