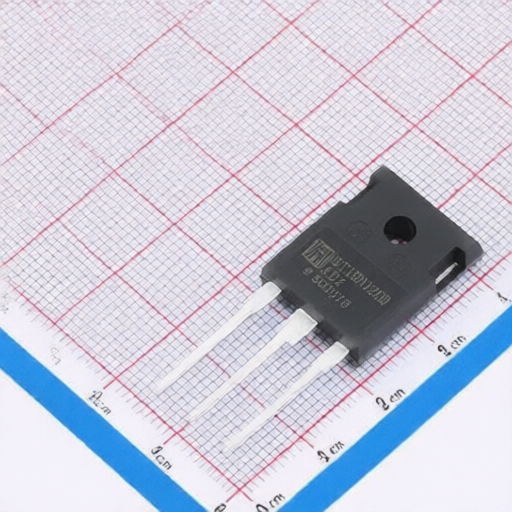

HTCSEMI HT19N1200ADZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
HT19N1200ADZ
Package:
TO-247-3
Customer #:
Key Attributes:
Silicon Carbide Power MOSFET, N-Channel Enhancement Mode
Description:
1.2kV 19A 125W Through Hole TO-247-3
Datasheet:
HTCSEMI HT19N1200ADZ
Products Specifications
Manufacturer:
Package:
TO-247-3
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
19A
Operating Temperature -:
-55℃~+150℃
RDS(on):
196mΩ
Gate Threshold Voltage (Vgs(th)):
4V
Reverse Transfer Capacitance (Crss@Vds):
5pF
Input Capacitance(Ciss):
606pF
Pd - Power Dissipation:
125W
Output Capacitance(Coss):
55pF
Gate Charge(Qg):
40nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
