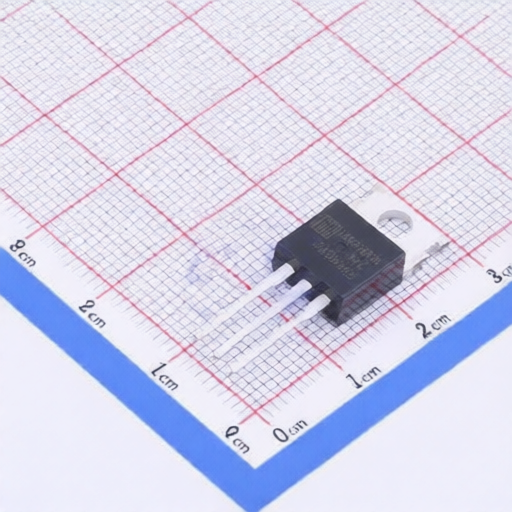

HTCSEMI HT65NF06ATZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
HT65NF06ATZ
Package:
TO-220AB-3
Customer #:
Key Attributes:
MOSFET N-CH 60V 65A TO-220AB-3
Description:
N-Channel 60V 65A 120W Through Hole TO-220AB-3
Datasheet:
HTCSEMI HT65NF06ATZ
Products Specifications
Manufacturer:
Package:
TO-220AB-3
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
65A
Operating Temperature -:
-55℃~+175℃
RDS(on):
15mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
90pF
Number:
1 N-channel
Output Capacitance(Coss):
600pF
Input Capacitance(Ciss):
1.365nF
Pd - Power Dissipation:
120W
Gate Charge(Qg):
42nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HTCSEMI
528 Products
Shenzhen HTCSEMI Co., Ltd.
(hereinafter referred to as "HTCSEMI") is a professional integrated circuit design company. The company established Wuhan company in 2009 and Shenzhen company in 2013. The company's main products include ADC/DAC, interface conversion and data transmission transceivers, micro-power clocks, memory circuits, metering and monitoring circuits, power management, etc., which are mainly used in industrial control, smart instruments, medical imaging, smart home and other fields. Since its establishment, HTCSEMI has passed the ISO9001 international quality system certification and the certification of integrated circuit design enterprises and high-tech enterprises by the Ministry of Industry and Information Technology of China and the competent departments of the Wuhan government. It has been selected as the most popular Chinese IC company and the top ten Chinese IC brand companies many times.
