HUAKE HCD65R280-S2
Manufacturer:
HUAKE
Asian Brands
Mfr. Part #:
HCD65R280-S2
Package:

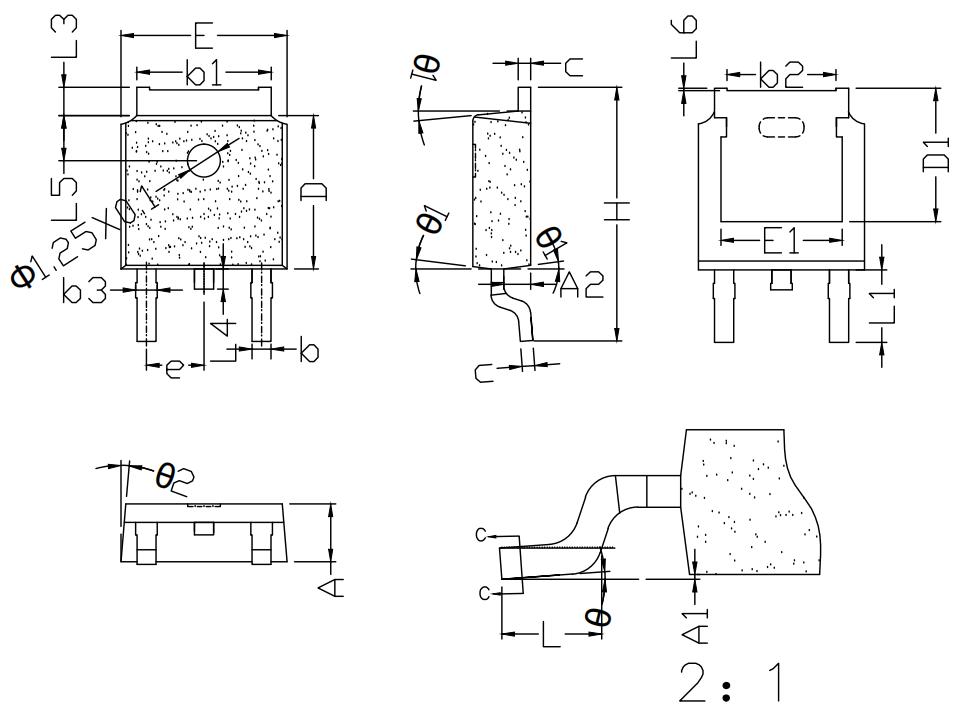

TO-252
Customer #:
Key Attributes:
MOSFET N-CH 650V 15A TO-252
Description:
650V 15A 240mΩ@10V 4.5V 1 N-channel 115W TO-252 Single FETs, MOSFETs RoHS
Datasheet:
HUAKE HCD65R280-S2
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
15A
RDS(on):
240mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4.5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
1pF
Number:
1 N-channel
Output Capacitance(Coss):
41pF
Pd - Power Dissipation:
115W
Input Capacitance(Ciss):
920pF
Gate Charge(Qg):
27nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
