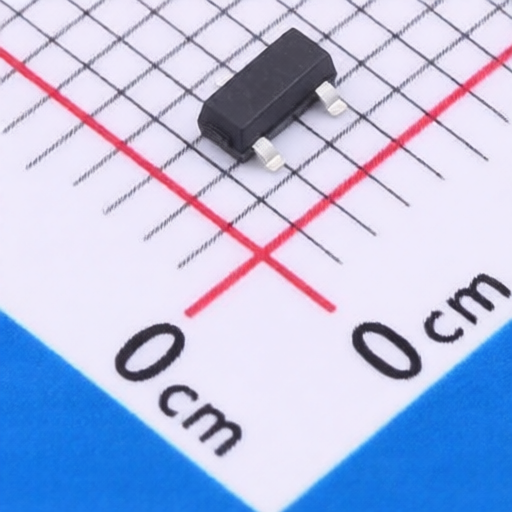

HTCSEMI HT2301ARTZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
HT2301ARTZ
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 3.5A SOT-23
Description:
P-Channel 20V 3.5A 1W Surface Mount SOT-23
Datasheet:
HTCSEMI HT2301ARTZ
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.5A
RDS(on):
95mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF@10V
Number:
1 P-Channel
Pd - Power Dissipation:
1W
Input Capacitance(Ciss):
405pF@10V
Gate Charge(Qg):
12nC@2.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HTCSEMI
528 Products
Shenzhen HTCSEMI Co., Ltd.
(hereinafter referred to as "HTCSEMI") is a professional integrated circuit design company. The company established Wuhan company in 2009 and Shenzhen company in 2013. The company's main products include ADC/DAC, interface conversion and data transmission transceivers, micro-power clocks, memory circuits, metering and monitoring circuits, power management, etc., which are mainly used in industrial control, smart instruments, medical imaging, smart home and other fields. Since its establishment, HTCSEMI has passed the ISO9001 international quality system certification and the certification of integrated circuit design enterprises and high-tech enterprises by the Ministry of Industry and Information Technology of China and the competent departments of the Wuhan government. It has been selected as the most popular Chinese IC company and the top ten Chinese IC brand companies many times.
