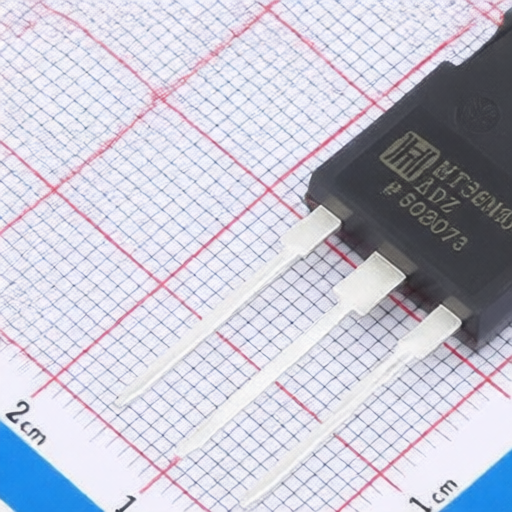

HTCSEMI HT36N900ADZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
HT36N900ADZ
Package:
TO-247-3
Customer #:
Key Attributes:
Silicon Carbide Power MOSFET N-Channel Enhancement Mode
Description:
900V 36A 125W Through Hole TO-247-3
Datasheet:
HTCSEMI HT36N900ADZ
Products Specifications
Manufacturer:
Package:
TO-247-3
Drain to Source Voltage:
900V
Current - Continuous Drain(Id):
36A
RDS(on):
78mΩ
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3.5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
5pF
Pd - Power Dissipation:
125W
Input Capacitance(Ciss):
760pF
Output Capacitance(Coss):
66pF
Gate Charge(Qg):
33nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HTCSEMI
528 Products
Shenzhen HTCSEMI Co., Ltd.
(hereinafter referred to as "HTCSEMI") is a professional integrated circuit design company. The company established Wuhan company in 2009 and Shenzhen company in 2013. The company's main products include ADC/DAC, interface conversion and data transmission transceivers, micro-power clocks, memory circuits, metering and monitoring circuits, power management, etc., which are mainly used in industrial control, smart instruments, medical imaging, smart home and other fields. Since its establishment, HTCSEMI has passed the ISO9001 international quality system certification and the certification of integrated circuit design enterprises and high-tech enterprises by the Ministry of Industry and Information Technology of China and the competent departments of the Wuhan government. It has been selected as the most popular Chinese IC company and the top ten Chinese IC brand companies many times.
