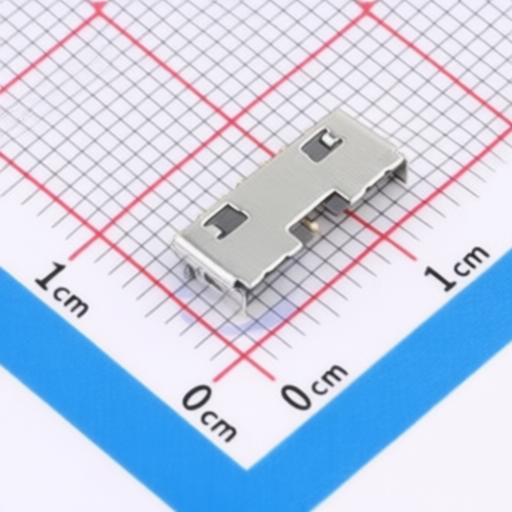

HDGC HDGC1507WR-S-7P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC1507WR-S-7P
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 7POS 1.5mm
Description:
Connector Header 7 position 1.5mm Pitch Surface Mount, Right Angle
Datasheet:
HDGC HDGC1507WR-S-7P
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.55mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x7P
Contact Material:
LCP
Pitch:
1.5mm
Number of PINs Per Row:
7
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.85mm
Z-Height of the Board:
2.35mm
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
