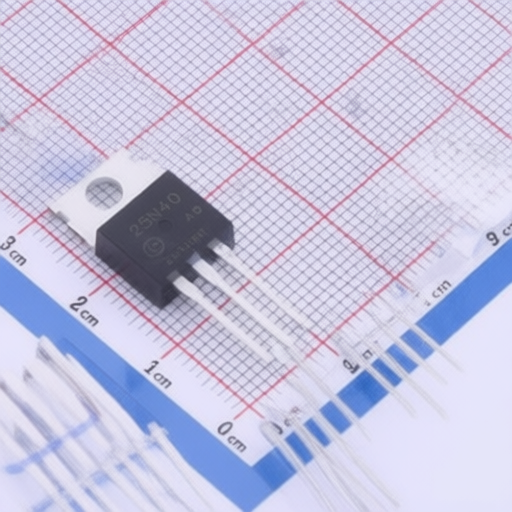

GL GL25N40A8
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL25N40A8
Package:
TO-220
Customer #:
Key Attributes:
MOSFET N-CH 400V 25A TO-220
Description:
N-Channel 400V 25A 250W Through Hole TO-220
Datasheet:
GL GL25N40A8
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
400V
Current - Continuous Drain(Id):
25A
RDS(on):
155mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
25pF
Output Capacitance(Coss):
320pF
Pd - Power Dissipation:
250W
Input Capacitance(Ciss):
2.65nF
Gate Charge(Qg):
60nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
GL
38 Products
Guanglei Electronic Technology Co., Ltd. is a professional power semiconductor product and solution design company whose products are mainly used in the field of power management. The current target markets of Opto Lei are consumer electronics, household appliances, information technology and high-power energy electronics.
The core competitiveness of the company team is the design, development and marketing of power management products, such as power MOSFETs, IGBTs, Schottky diodes, fast recovery rectifier diodes and integrated circuits. They have been engaged in power semiconductor R&D, operation and sales for more than 17 years. experience.
