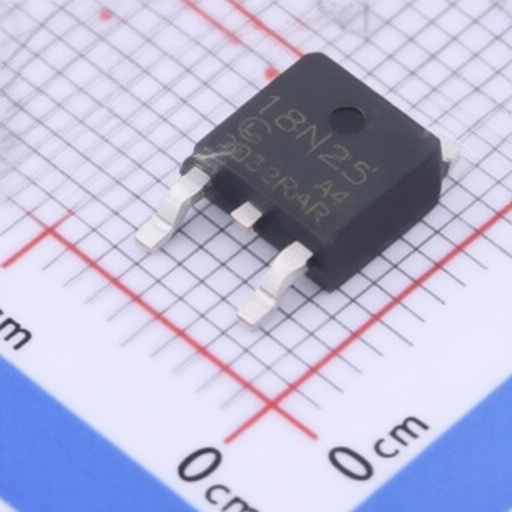

GL GL18N25A4
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL18N25A4
Package:
TO-252
Customer #:
Key Attributes:
N-Channel, Current: 18A, Voltage: 250V
Description:
250V 18A 175mΩ@10V 4V@250uA 156W TO-252 Single FETs, MOSFETs RoHS
Datasheet:
GL GL18N25A4
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
250V
Current - Continuous Drain(Id):
18A
RDS(on):
175mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
17pF
Output Capacitance(Coss):
180pF
Input Capacitance(Ciss):
1.14nF
Pd - Power Dissipation:
156W
Gate Charge(Qg):
20.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
