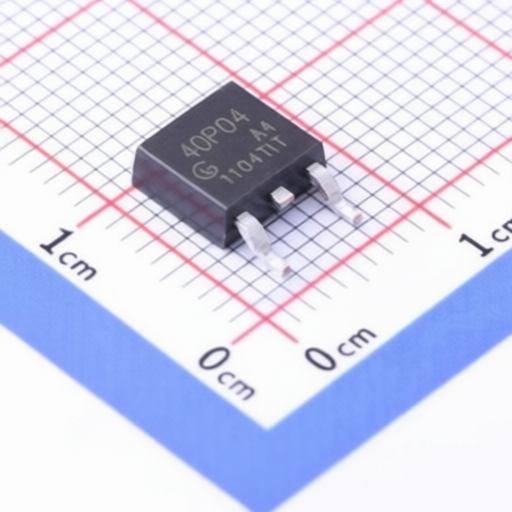

GL GL40P04A4
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL40P04A4
Package:
TO-252
Customer #:
Key Attributes:
MOSFET P-CH 40V 40A TO-252
Description:
P-Channel 40V 40A 80W Surface Mount TO-252
Datasheet:
GL GL40P04A4
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
40A
Operating Temperature -:
-55℃~+150℃
RDS(on):
14mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
310pF
Output Capacitance(Coss):
370pF
Pd - Power Dissipation:
80W
Input Capacitance(Ciss):
2.96nF
Gate Charge(Qg):
72nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
