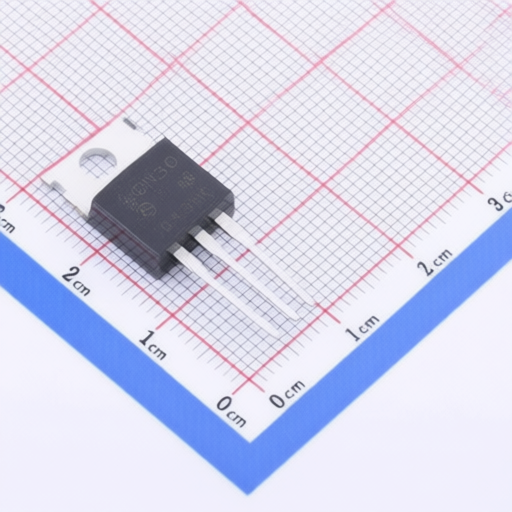

GL GL40N30A8
Manufacturer:
GL
Asian Brands
Mfr. Part #:
GL40N30A8
Package:
TO-220AB
Customer #:
Key Attributes:
MOSFET N-CH 300V 40A TO-220AB
Description:
N-Channel 300V 40A 340W Through Hole TO-220AB
Datasheet:
GL GL40N30A8
Products Specifications
Manufacturer:
Package:
TO-220AB
Drain to Source Voltage:
300V
Current - Continuous Drain(Id):
40A
RDS(on):
90mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
45pF
Output Capacitance(Coss):
320pF
Pd - Power Dissipation:
340W
Input Capacitance(Ciss):
3.1nF
Gate Charge(Qg):
65nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
GL
38 Products
Guanglei Electronic Technology Co., Ltd. is a professional power semiconductor product and solution design company whose products are mainly used in the field of power management. The current target markets of Opto Lei are consumer electronics, household appliances, information technology and high-power energy electronics.
The core competitiveness of the company team is the design, development and marketing of power management products, such as power MOSFETs, IGBTs, Schottky diodes, fast recovery rectifier diodes and integrated circuits. They have been engaged in power semiconductor R&D, operation and sales for more than 17 years. experience.
