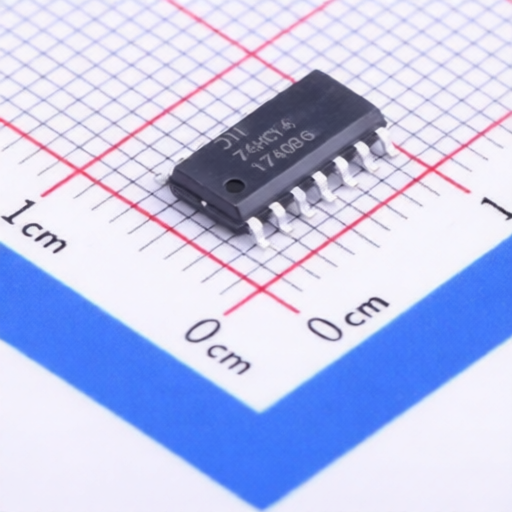

DIODES 74HC14S14-13
Manufacturer:
DIODES
Mfr. Part #:
74HC14S14-13
Package:
SOIC-14
Customer #:
Key Attributes:
HEX INVERTER WITH SCHMITT TRIGGER INPUTS
Description:
20uA 21ns@6V,50pF 2V~6V SOIC-14 Gates and Inverters RoHS
Datasheet:
DIODES 74HC14S14-13
Products Specifications
Manufacturer:
Package:
SOIC-14
Operating Temperature:
-40℃~+125℃
Logic Family:
74HC Series
Input Type:
-
Quiescent Current(Iq):
20uA
Propagation Delay:
21ns@6V,50pF
Input Logic Level -Low:
300mV~1.2V
Voltage - Supply:
2V~6V
Number of Channels:
6;1
Current - Output High(IOH):
5.2mA
Current - Output Low(IOL):
5.2mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIODES
6026 Products
Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets.
