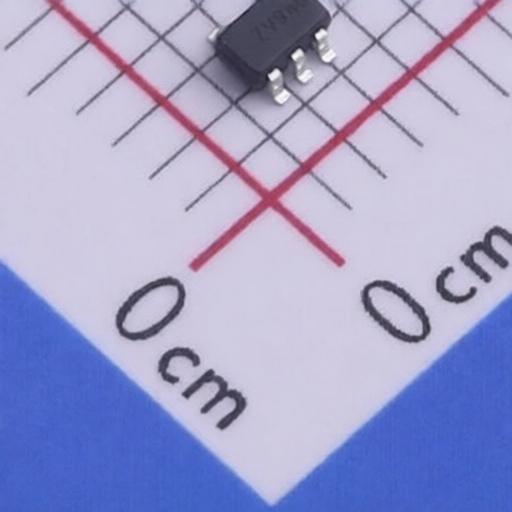

DIODES 74AHCT1G14SE-7
Manufacturer:
DIODES
Mfr. Part #:
74AHCT1G14SE-7
Package:
SOT-353
Customer #:
Key Attributes:
SINGLE SCHMITT-TRIGGER INVERTER
Description:
Schmitt trigger 2uA 8ns@5V,50pF 4.5V~5.5V SOT-353 Gates and Inverters RoHS
Datasheet:
DIODES 74AHCT1G14SE-7
Products Specifications
Manufacturer:
Package:
SOT-353
Operating Temperature:
-40℃~+125℃
Logic Family:
74AHCT Series
Input Type:
Schmitt trigger
Output Logic Level - Low:
550mV
Quiescent Current(Iq):
2uA
Propagation Delay:
8ns@5V,50pF
Input Logic Level -Low:
500mV~600mV
Voltage - Supply:
4.5V~5.5V
Number of Channels:
1;1
Current - Output High(IOH):
8mA
Output Logic Level - High:
3.7V
Current - Output Low(IOL):
8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
