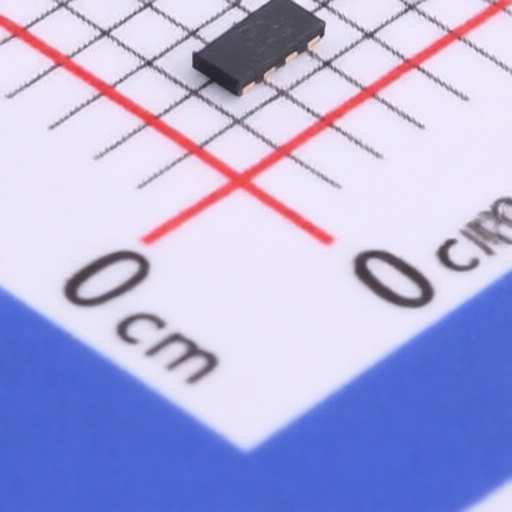

DIODES 74LVC2G32HD4-7
Manufacturer:
DIODES
Mfr. Part #:
74LVC2G32HD4-7
Package:
DFN-8(1x2)
Customer #:
Key Attributes:
DUAL 2-INPUT OR GATE
Description:
40uA 4ns@5V,50pF 1.65V~5.5V DFN-8(1x2) Gates and Inverters RoHS
Datasheet:
DIODES 74LVC2G32HD4-7
Products Specifications
Manufacturer:
Package:
DFN-8(1x2)
Input Logic Level - Low:
700mV;800mV
Operating Temperature:
-40℃~+125℃
Logic Family:
74LVC Series
Output Logic Level - Low:
450mV;300mV;400mV;550mV
Quiescent Current(Iq):
40uA
Propagation Delay:
4ns@5V,50pF
Voltage - Supply:
1.65V~5.5V
Number of Channels:
2;2
Current - Output High(IOH):
32mA
Current - Output Low(IOL):
32mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
