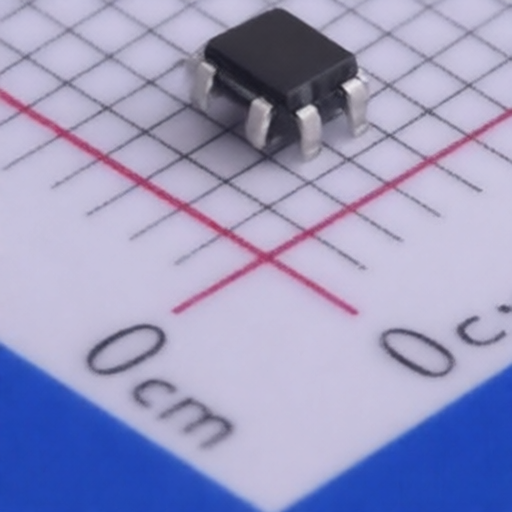

DIODES 74AHC1G04W5-7
Manufacturer:
DIODES
Mfr. Part #:
74AHC1G04W5-7
Package:
SOT-25
Customer #:
Key Attributes:
SINGLE INVERTER GATE
Description:
Schmitt trigger 1uA 7.5ns@5V,50pF 2V~5.5V SOT-25 Gates and Inverters RoHS
Datasheet:
DIODES 74AHC1G04W5-7
Products Specifications
Manufacturer:
Package:
SOT-25
Operating Temperature:
-40℃~+125℃
Logic Family:
74AHC Series
Input Type:
Schmitt trigger
Output Logic Level - Low:
100mV;550mV
Quiescent Current(Iq):
1uA
Propagation Delay:
7.5ns@5V,50pF
Input Logic Level -Low:
500mV~1.65V
Voltage - Supply:
2V~5.5V
Number of Channels:
1;1
Current - Output High(IOH):
8mA
Output Logic Level - High:
1.9V;2.9V;4.4V
Current - Output Low(IOL):
8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
