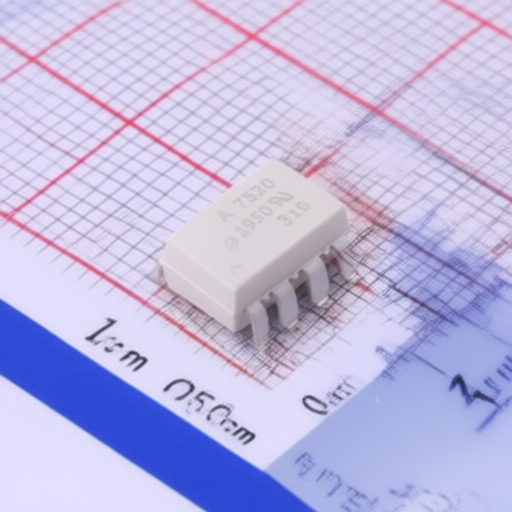

Broadcom HCPL-7520-500E

Broadcom HCPL-7520-500E

Name: Broadcom HCPL-7520-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCPL-7520-500E

Package: SOP-8-2.54mm

Customer #:

Key Attributes: Isolated Linear Sensing IC

Description: 4.5V~5.5V DC SOP-8-2.54mm Logic Output Optoisolators RoHS

Datasheet: Broadcom HCPL-7520-500E

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Logic Output Optoisolators

Manufacturer:

Broadcom

Package:

SOP-8-2.54mm

Power Dissipation:

600mW

Low Level Delay Time:

2.2us

High Level Delay Time:

3.4us

Input threshold current:

Voltage - Supply:

4.5V~5.5V

Operating Temperature:

-40℃~+85℃

CMTI(kV/us):

15kV/us

Isolation Voltage(Vrms):

3.75kV

Number of Channels:

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
