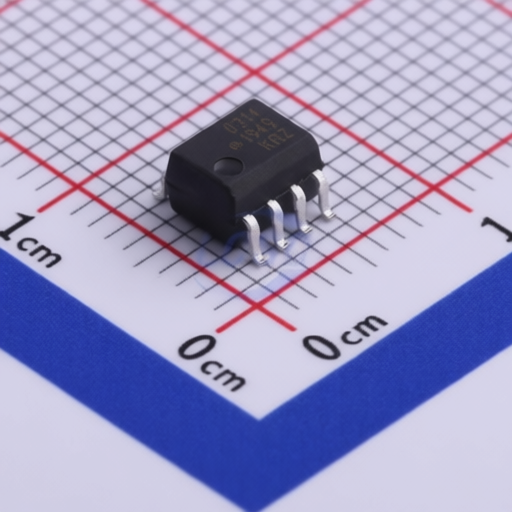

Broadcom HCPL-0314-500E

Broadcom HCPL-0314-500E

Name: Broadcom HCPL-0314-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCPL-0314-500E

Package: SOP-8

Customer #:

Key Attributes: 0.4 Amp Output Current IGBT Gate Drive Optocoupler

Description: 500mA 5V 1.5V 10V~30V DC SOP-8 Logic Output Optoisolators RoHS

Datasheet: Broadcom HCPL-0314-500E

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SOP-8

Power Dissipation:

250mW

Output Current:

500mA

Low Level Delay Time:

700ns

High Level Delay Time:

700ns

Reverse Voltage:

Voltage - Forward(Vf):

1.5V

Voltage - Supply:

10V~30V

Forward Current(If):

12mA

Operating Temperature:

-40℃~+100℃

CMTI(kV/us):

35kV/us

Number of Channels:

Input threshold current:

7mA

Isolation Voltage(Vrms):

3.75kV

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
