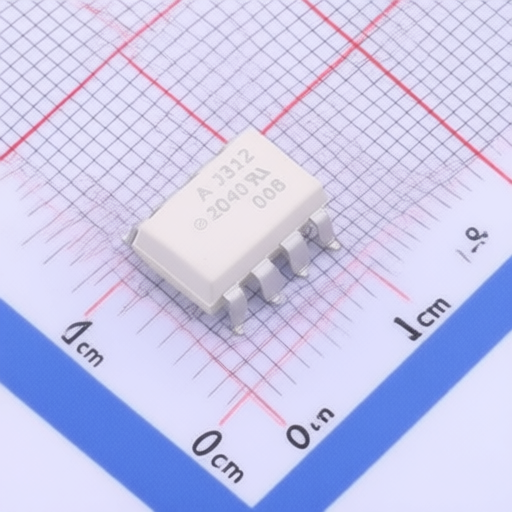

Broadcom HCPL-J312-500E

Broadcom HCPL-J312-500E

Name: Broadcom HCPL-J312-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCPL-J312-500E

Package: SOP-8-2.54mm

Customer #:

Key Attributes: DC Input 1 Channel Isolation Voltage (rms): 3750V

Description: 2.5A 5V 1.95V 15V~30V DC SOP-8-2.54mm Logic Output Optoisolators RoHS

Datasheet: Broadcom HCPL-J312-500E

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SOP-8-2.54mm

Power Dissipation:

295mW

Output Current:

2.5A

Low Level Delay Time:

500ns

High Level Delay Time:

500ns

Reverse Voltage:

Voltage - Forward(Vf):

1.95V

Voltage - Supply:

15V~30V

Forward Current(If):

16mA

Operating Temperature:

-40℃~+100℃

CMTI(kV/us):

35kV/us

Number of Channels:

Input threshold current:

5mA

Isolation Voltage(Vrms):

3.75kV

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
