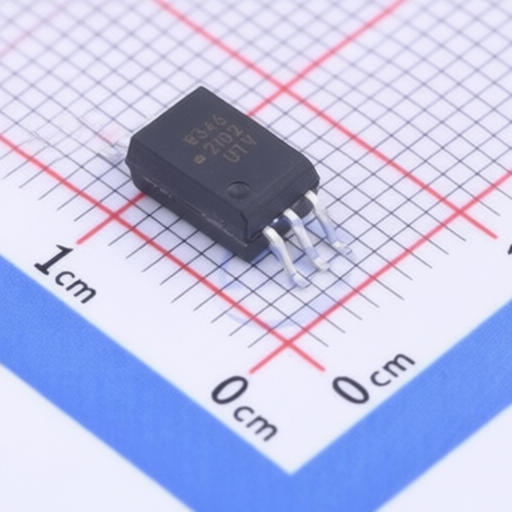

Broadcom ACPL-W346-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-W346-500E
Package:
SOP-6-6.8mm
Customer #:
Key Attributes:
2.5-Amp Output Current Power, GaN and SiC MOSFET Gate Drive Optocoupler with Rail-to-Rail Output
Description:
2.5A 5V 1.55V 10V~20V DC SOP-6-6.8mm Logic Output Optoisolators RoHS
Datasheet:
Broadcom ACPL-W346-500E
Products Specifications
Category:
Manufacturer:
Package:
SOP-6-6.8mm
Power Dissipation:
550mW
Output Current:
2.5A
Low Level Delay Time:
120ns
High Level Delay Time:
120ns
Reverse Voltage:
5V
Voltage - Forward(Vf):
1.55V
Voltage - Supply:
10V~20V
Forward Current(If):
11mA
Operating Temperature:
-40℃~+105℃
CMTI(kV/us):
100kV/us
Number of Channels:
1
Input threshold current:
4mA
Isolation Voltage(Vrms):
5kV
Input Type:
DC
