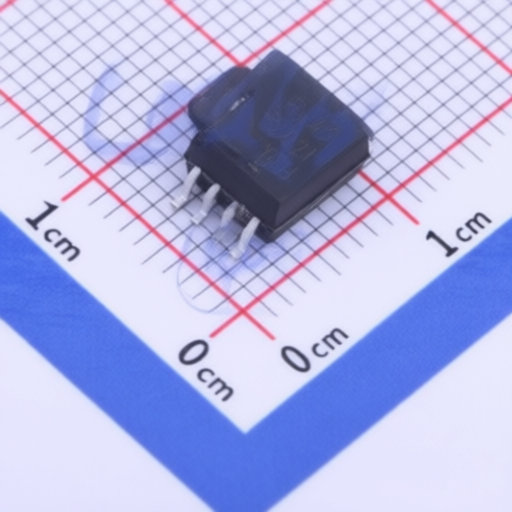

Broadcom ACPL-H342-500E

Broadcom ACPL-H342-500E

Name: Broadcom ACPL-H342-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: ACPL-H342-500E

Package: SOP-8-300mil

Customer #:

Description: 2.5A 1.55V 15V~30V DC SOP-8-300mil Logic Output Optoisolators RoHS

Datasheet: Broadcom ACPL-H342-500E

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SOP-8-300mil

Power Dissipation:

550mW

Output Current:

2.5A

Low Level Delay Time:

350ns

High Level Delay Time:

250ns

Input threshold current:

4mA

Voltage - Forward(Vf):

1.55V

Voltage - Supply:

15V~30V

Operating Temperature:

-40℃~+105℃

Isolation Voltage(Vrms):

3.75kV

CMTI(kV/us):

40kV/us

Number of Channels:

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
