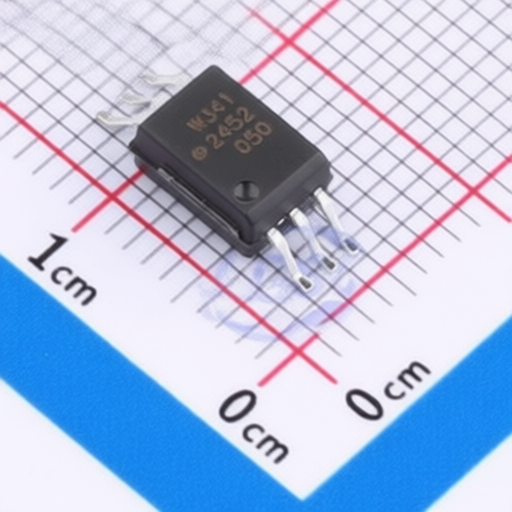

Broadcom ACPL-W341-500E

Broadcom ACPL-W341-500E

Name: Broadcom ACPL-W341-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: ACPL-W341-500E

Package: SO-6-6.8mm

Customer #:

Key Attributes: 3.0 Amp Output Current IGBT Gate Drive Optocoupler with Rail-to-Rail Output Voltage

Description: 3A 5V 43ns 15V~30V 40ns 1.55V SO-6-6.8mm Isolators - Gate Drivers RoHS

Datasheet: Broadcom ACPL-W341-500E

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SO-6-6.8mm

Power Dissipation:

745mW

Output Current:

Operating Temperature:

-40℃~+105℃

Isolation voltage(Vrms):

5kV

Propagation Delay(tpd):

200ns;200ns

Reverse Voltage:

Load Type:

MOSFET;IGBT

Rise Time:

43ns

Voltage - Supply:

15V~30V

Fall Time:

40ns

Voltage - Forward(Vf):

1.55V

CMTI(kV/us):

35kV/us

Number of Channels:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	-
USHTS	-
TARIC	-
CAHTS	-
BRHTS	-
INHTS	-
MXHTS	-
