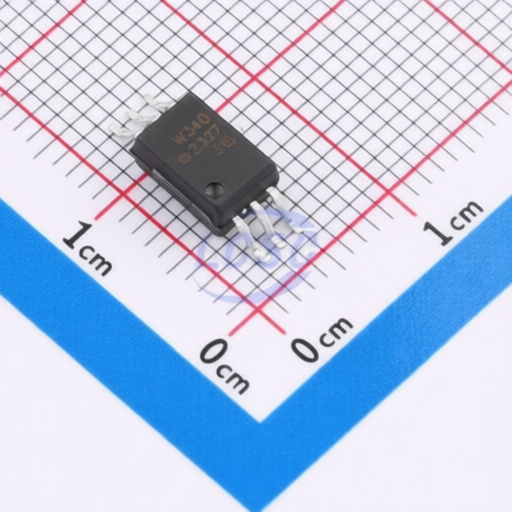

Broadcom ACPL-W340-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-W340-500E
Package:
SO-6-6.8mm
Customer #:
Key Attributes:
1.0 Amp Output Current IGBT Gate Drive Optocoupler with Rail-to-Rail Output Voltage in Stretched S06
Description:
1A 15V~30V SO-6-6.8mm Isolators - Gate Drivers RoHS
Datasheet:
Broadcom ACPL-W340-500E
Products Specifications
Category:
Manufacturer:
Package:
SO-6-6.8mm
Power Dissipation:
745mW
Output Current:
1A
Operating Temperature:
-40℃~+105℃
Isolation voltage(Vrms):
5kV
Propagation Delay(tpd):
200ns;200ns
Load Type:
MOSFET;IGBT
Voltage - Supply:
15V~30V
CMTI(kV/us):
35kV/us
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
