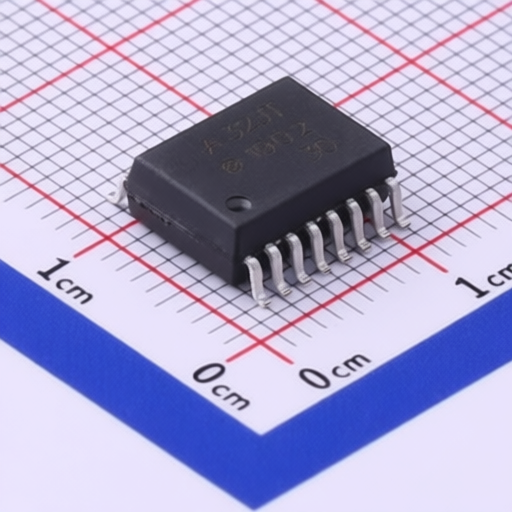

Broadcom ACPL-32JT-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-32JT-500E
Package:
SO-16-300mil
Customer #:
Key Attributes:
2.5Amp Gate Drive Optocoupler with Integrated Flyback Controller for Isolated DC-DC Converter
Description:
2.5A 6V 70ns 35ns 1.55V SO-16-300mil Isolators - Gate Drivers RoHS
Datasheet:
Broadcom ACPL-32JT-500E
Products Specifications
Category:
Manufacturer:
Package:
SO-16-300mil
Power Dissipation:
580mW
Output Current:
2.5A
Operating Temperature:
-40℃~+125℃
Isolation voltage(Vrms):
5kV
Propagation Delay(tpd):
250ns;250ns
Reverse Voltage:
6V
Load Type:
IGBT
Rise Time:
70ns
Voltage - Supply:
18V~22V;8V~18V
Fall Time:
35ns
Voltage - Forward(Vf):
1.55V
CMTI(kV/us):
50kV/us
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 850 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
