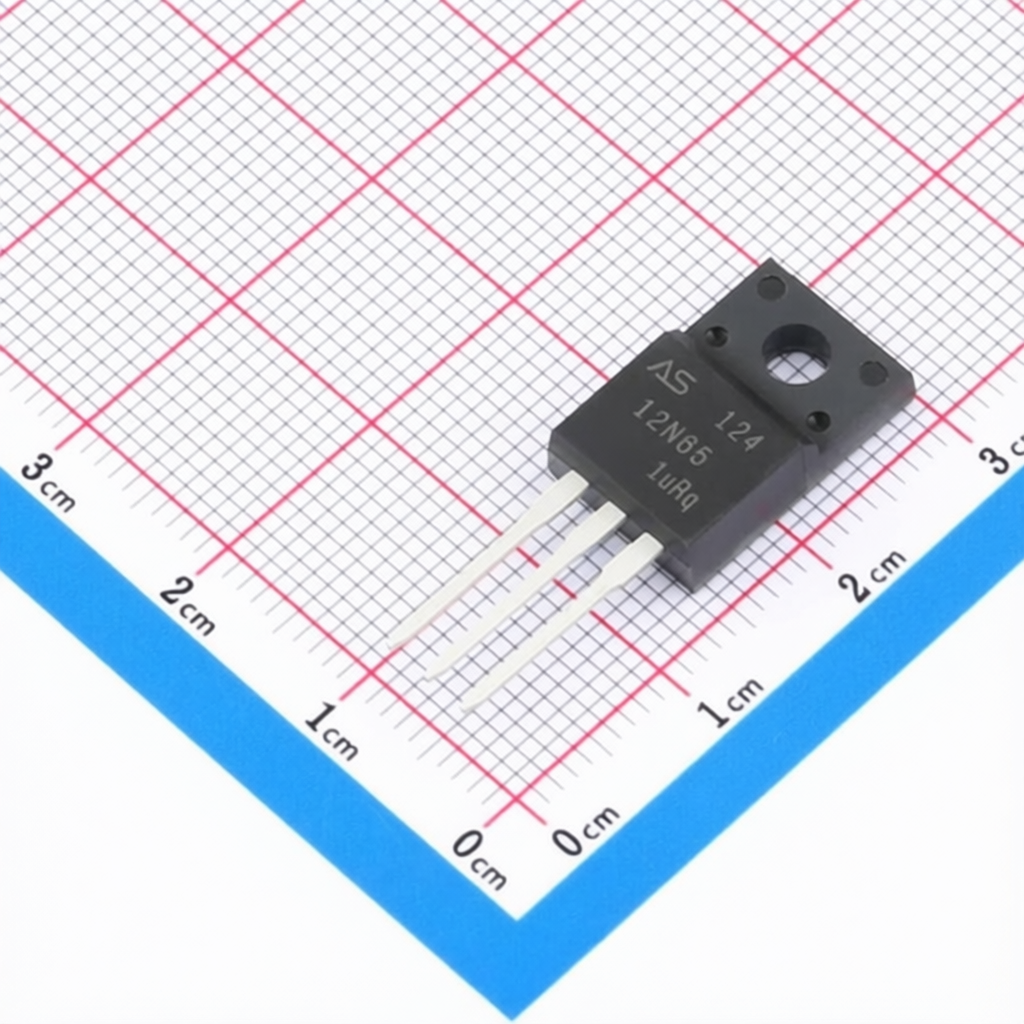

ASDsemi ASDM12N65F-T
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM12N65F-T
Package:
TO-220F
Customer #:
Key Attributes:
MOSFET 650V 12A TO-220F
Description:
650V 12A 24W Through Hole TO-220F
Datasheet:
ASDsemi ASDM12N65F-T
Products Specifications
Manufacturer:
Package:
TO-220F
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
12A
Operating Temperature -:
-55℃~+150℃
RDS(on):
650mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
9.9pF@25V
Input Capacitance(Ciss):
1.89nF@25V
Pd - Power Dissipation:
24W
Gate Charge(Qg):
37nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ASDsemi
90 Products
Xi’an Ascend Semiconductor Co.,Ltd. is one of top local semiconductor product provider, was started in Xi’an Hi-Tech Park. Ascendsemi has sales offices in Shenzhen, Taiwan, and warehouse in HongKong.
Ascendsemi has seven product lines including Operational Amplifier/Audio Amplifier、Power management IC(Charger、LDO、Buck/Boost、Load Switch、LED Driver)、 Interface circuit、Motor driver 、Lithium protection and charging management、Power Devices(MOSFET、Schottky Diode、Transistor)and Car Electronics. There are more than 500 products in Ascendsemi’s catalog now.These products are widely use in powers, computers, televisions, communication equipment, security monitors, automptive, smart wearing, medical electronics , BMS, etc.
