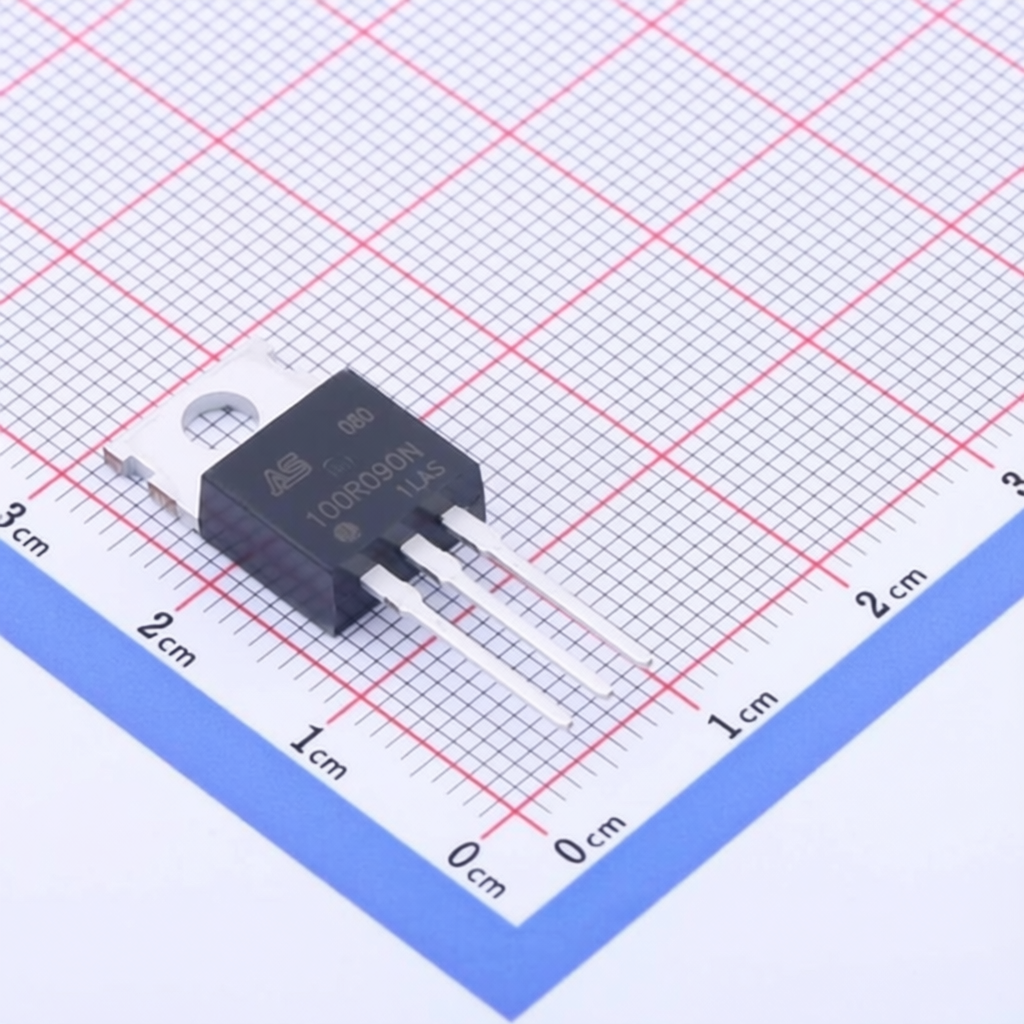

ASDsemi ASDM100R090NP-T
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM100R090NP-T
Package:
TO-220
Customer #:
Key Attributes:
MOSFET 100V 75A TO-220
Description:
100V 75A 3.1W Through Hole TO-220
Datasheet:
ASDsemi ASDM100R090NP-T
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
75A
RDS(on):
12mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
15pF@50V
Output Capacitance(Coss):
270pF
Pd - Power Dissipation:
3.1W
Input Capacitance(Ciss):
3.35nF
Gate Charge(Qg):
49nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ASDsemi
90 Products
Xi’an Ascend Semiconductor Co.,Ltd. is one of top local semiconductor product provider, was started in Xi’an Hi-Tech Park. Ascendsemi has sales offices in Shenzhen, Taiwan, and warehouse in HongKong.
Ascendsemi has seven product lines including Operational Amplifier/Audio Amplifier、Power management IC(Charger、LDO、Buck/Boost、Load Switch、LED Driver)、 Interface circuit、Motor driver 、Lithium protection and charging management、Power Devices(MOSFET、Schottky Diode、Transistor)and Car Electronics. There are more than 500 products in Ascendsemi’s catalog now.These products are widely use in powers, computers, televisions, communication equipment, security monitors, automptive, smart wearing, medical electronics , BMS, etc.
