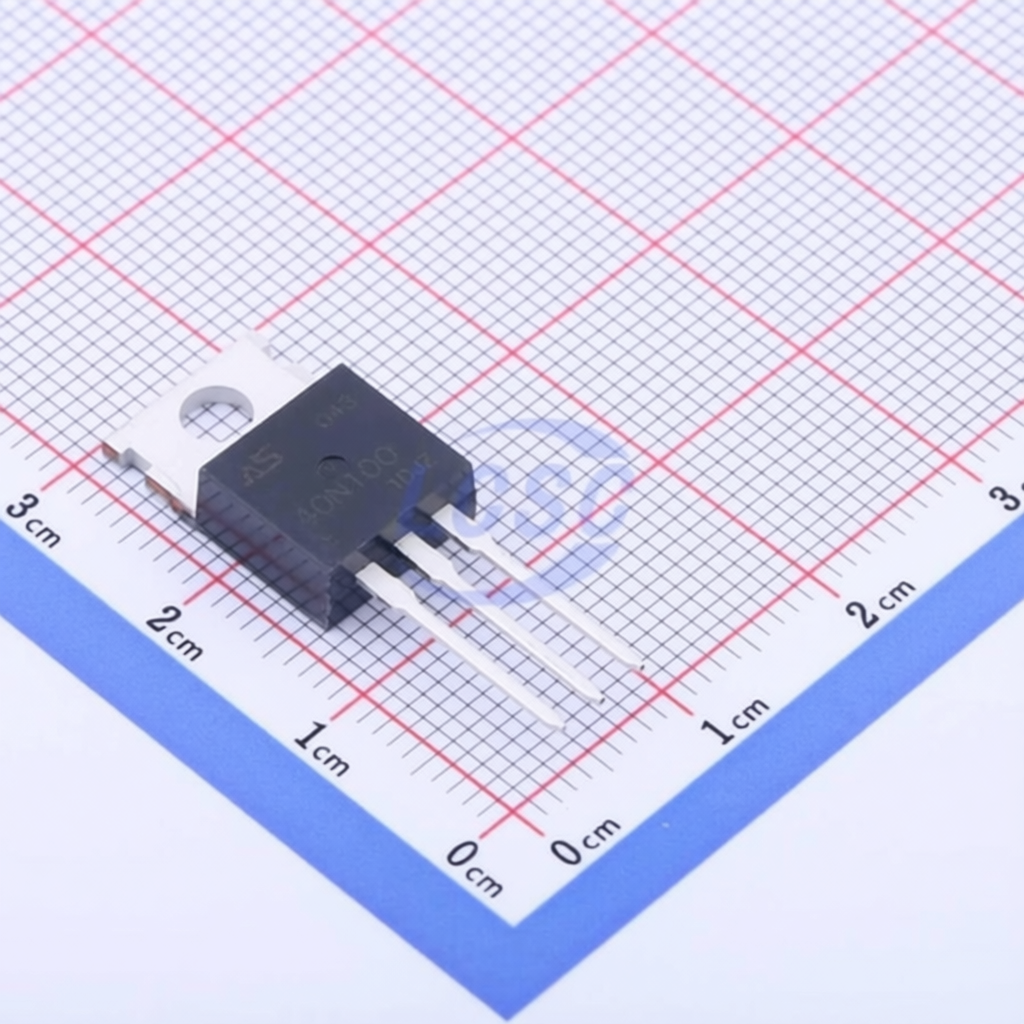

ASDsemi ASDM40N100P-T
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM40N100P-T
Package:
TO-220
Customer #:
Key Attributes:
MOSFET 40V 100A TO-220
Description:
40V 100A 65W Through Hole TO-220
Datasheet:
ASDsemi ASDM40N100P-T
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
100A
RDS(on):
4.5mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
-
Reverse Transfer Capacitance (Crss@Vds):
162pF
Output Capacitance(Coss):
540pF
Pd - Power Dissipation:
65W
Input Capacitance(Ciss):
3.424nF
Gate Charge(Qg):
29nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
