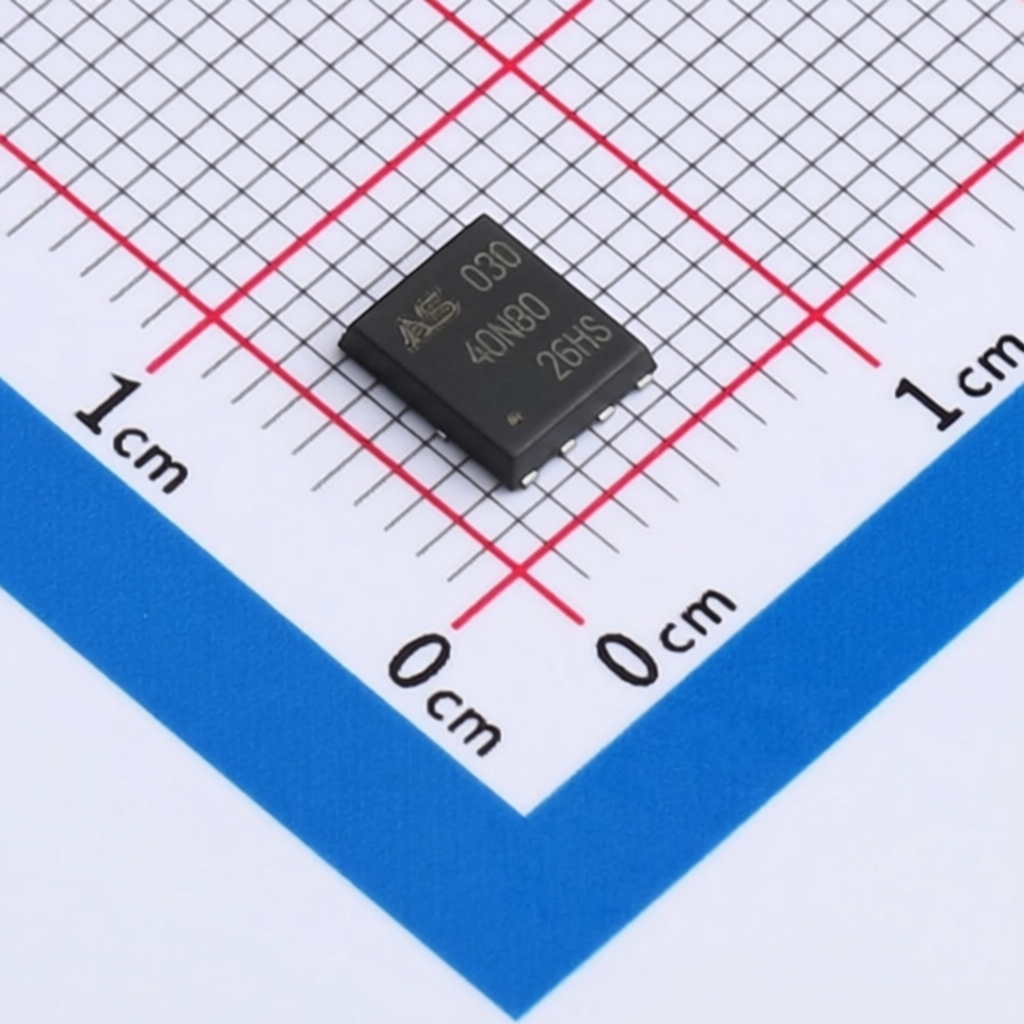

ASDsemi ASDM40N80Q-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM40N80Q-R
Package:
DFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 40V 80A DFN5x6-8
Description:
N-Channel 40V 80A 65W Surface Mount DFN5x6-8
Datasheet:
ASDsemi ASDM40N80Q-R
Products Specifications
Manufacturer:
Package:
DFN5x6-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+150℃
RDS(on):
4.5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
80pF
Number:
1 N-channel
Output Capacitance(Coss):
780pF
Input Capacitance(Ciss):
1.56nF
Pd - Power Dissipation:
65W
Gate Charge(Qg):
29nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
