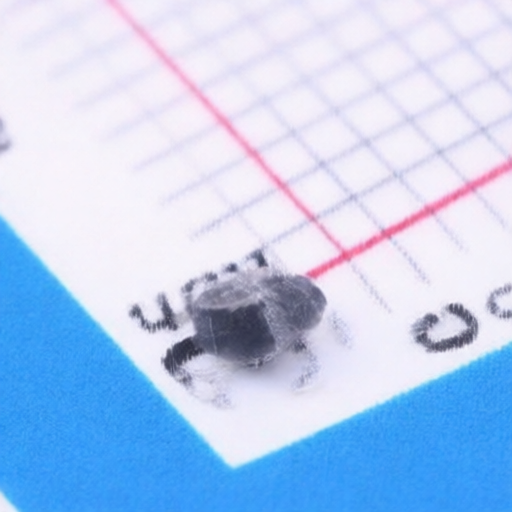

APEC AP2310GN
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP2310GN
Package:
SOT-23
Customer #:
Key Attributes:
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Description:
60V 3A 70mΩ@10V 1.55V@250uA 1.38W SOT-23 Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
3A
RDS(on):
70mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.55V@250uA
Reverse Transfer Capacitance (Crss@Vds):
50pF
Pd - Power Dissipation:
1.38W
Input Capacitance(Ciss):
550pF
Output Capacitance(Coss):
70pF
Gate Charge(Qg):
6nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
