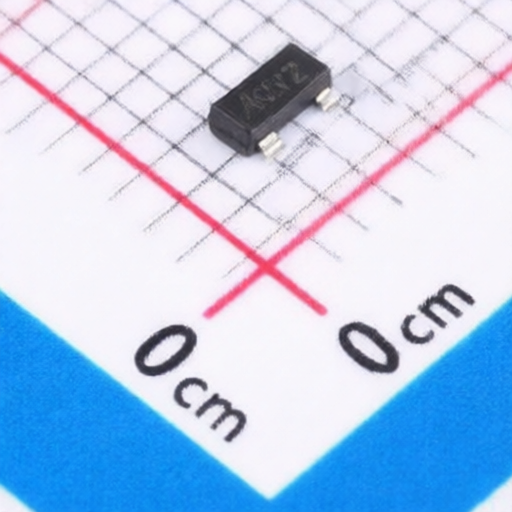

APEC AP3601N

Name: APEC AP3601N
Brand: APEC

Manufacturer: APEC Asian Brands

Mfr. Part #: AP3601N

Package: SOT-23S

Customer #:

Key Attributes: MOSFET P-CH 30V 2.9A SOT-23S

Description: P-Channel 30V 2.9A 1.25W Surface Mount SOT-23S

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

APEC

Package:

SOT-23S

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

2.9A

Operating Temperature -:

-55℃~+150℃

RDS(on):

95mΩ@10V

Gate Threshold Voltage (Vgs(th)):

3V@250uA

Reverse Transfer Capacitance (Crss@Vds):

55pF

Number:

1 P-Channel

Input Capacitance(Ciss):

500pF

Pd - Power Dissipation:

1.25W

Gate Charge(Qg):

6.5nC

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
