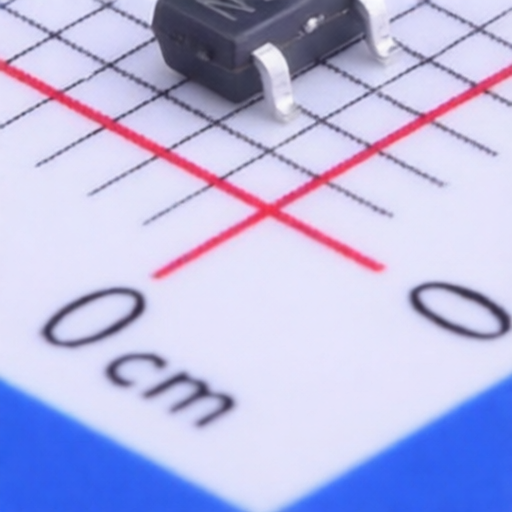

APEC AP2307GN-HF

Name: APEC AP2307GN-HF
Brand: APEC

Manufacturer: APEC Asian Brands

Mfr. Part #: AP2307GN-HF

Package: SOT-23

Customer #:

Key Attributes: MOSFET 16V 4A SOT-23

Description: 16V 4A 1.38W Surface Mount SOT-23

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

APEC

Package:

SOT-23

Drain to Source Voltage:

16V

Current - Continuous Drain(Id):

Operating Temperature -:

-55℃~+150℃

RDS(on):

60mΩ@4.5V

Gate Threshold Voltage (Vgs(th)):

1V@250uA

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

160pF

Number:

Input Capacitance(Ciss):

1.58nF

Output Capacitance(Coss):

180pF

Pd - Power Dissipation:

1.38W

Gate Charge(Qg):

15nC@4.5V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

Get Best Price

Inquiry

Negotiate

Payment

Shipping

APEC

146 Products

Asian Brand

Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
