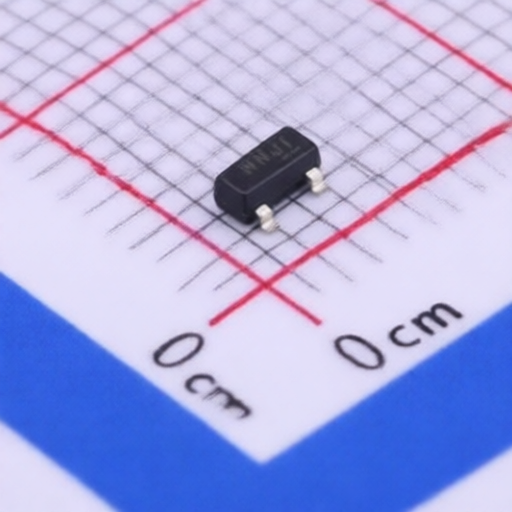

APEC AP2320GN
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP2320GN
Package:
SOT-23S
Customer #:
Key Attributes:
MOSFET N-CH 100V 0.25A SOT-23S
Description:
N-Channel 100V 0.25A 0.7W Surface Mount SOT-23S
Products Specifications
Manufacturer:
Package:
SOT-23S
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
250mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
5Ω@10V,0.25A
Gate Threshold Voltage (Vgs(th)):
1V
Reverse Transfer Capacitance (Crss@Vds):
6pF
Number:
1 N-channel
Input Capacitance(Ciss):
51pF
Pd - Power Dissipation:
700mW
Gate Charge(Qg):
3.2nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
