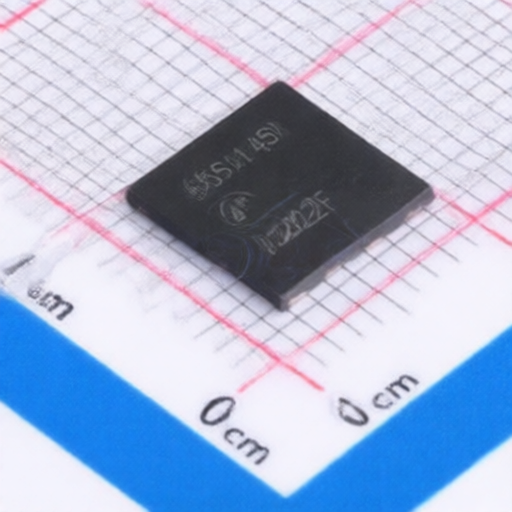

APEC AP65SA145DDT8
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP65SA145DDT8
Package:
PDFN-4(8x8)
Customer #:
Key Attributes:
MOSFET N-CH 650V 24.8A PDFN-4(8x8)
Description:
N-Channel 650V 24.8A 178W Surface Mount PDFN-4(8x8)
Products Specifications
Manufacturer:
Package:
PDFN-4(8x8)
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
24.8A
RDS(on):
145mΩ@10V,9.6A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2V
Reverse Transfer Capacitance (Crss@Vds):
6pF
Number:
1 N-channel
Pd - Power Dissipation:
178W
Input Capacitance(Ciss):
3.92nF
Gate Charge(Qg):
110nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
