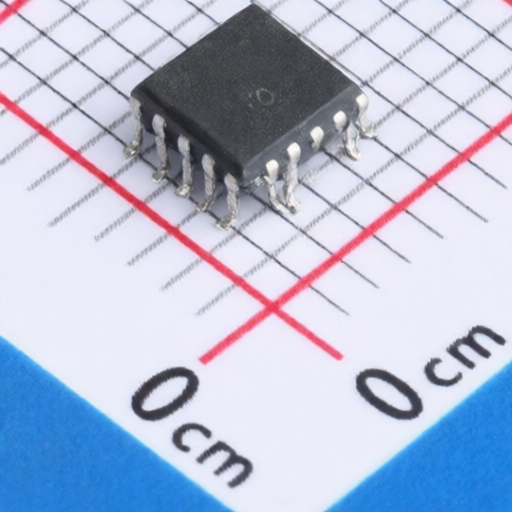

APEC AP3P7R0EMT
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP3P7R0EMT
Package:
PMPAK-8(5x6)
Customer #:
Key Attributes:
MOSFET P-CH 30V 75A PMPAK-8(5x6)
Description:
P-Channel 30V 75A 59.5W Surface Mount PMPAK-8(5x6)
Products Specifications
Manufacturer:
Package:
PMPAK-8(5x6)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
75A
Operating Temperature -:
-55℃~+150℃
RDS(on):
7mΩ@10V,20A
Gate Threshold Voltage (Vgs(th)):
-
Reverse Transfer Capacitance (Crss@Vds):
330pF@15V
Number:
1 P-Channel
Pd - Power Dissipation:
59.5W
Input Capacitance(Ciss):
6.88nF
Gate Charge(Qg):
54.4nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
