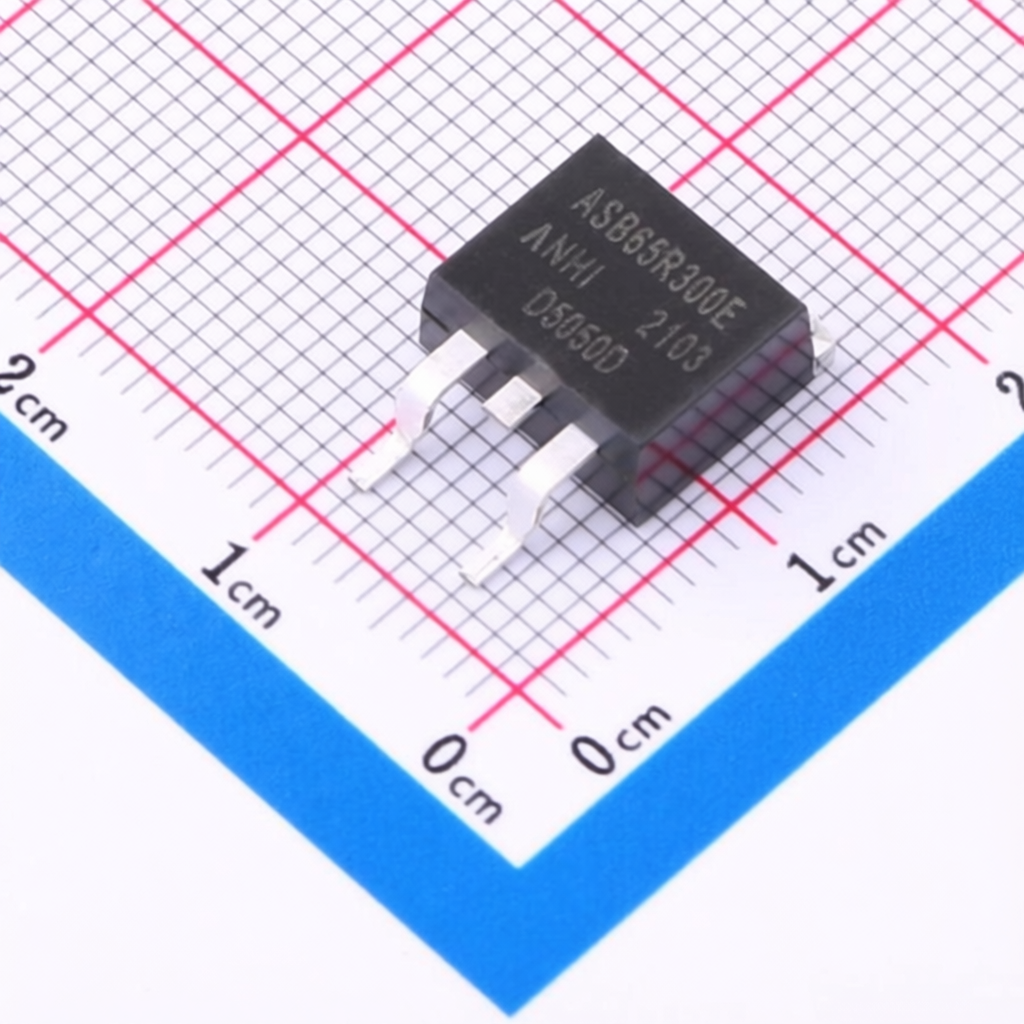

ANHI ASB65R300E
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
ASB65R300E
Package:
TO-263
Customer #:
Key Attributes:
MOSFET N-CH 655V 15A TO-263
Description:
N-Channel 655V 15A 118W Surface Mount TO-263
Datasheet:
ANHI ASB65R300E
Products Specifications
Manufacturer:
Package:
TO-263
Drain to Source Voltage:
655V
Current - Continuous Drain(Id):
15A
RDS(on):
300mΩ
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3.5V
Reverse Transfer Capacitance (Crss@Vds):
5.11pF@50V
Number:
1 N-channel
Input Capacitance(Ciss):
1.02nF@50V
Pd - Power Dissipation:
118W
Gate Charge(Qg):
22.94nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
