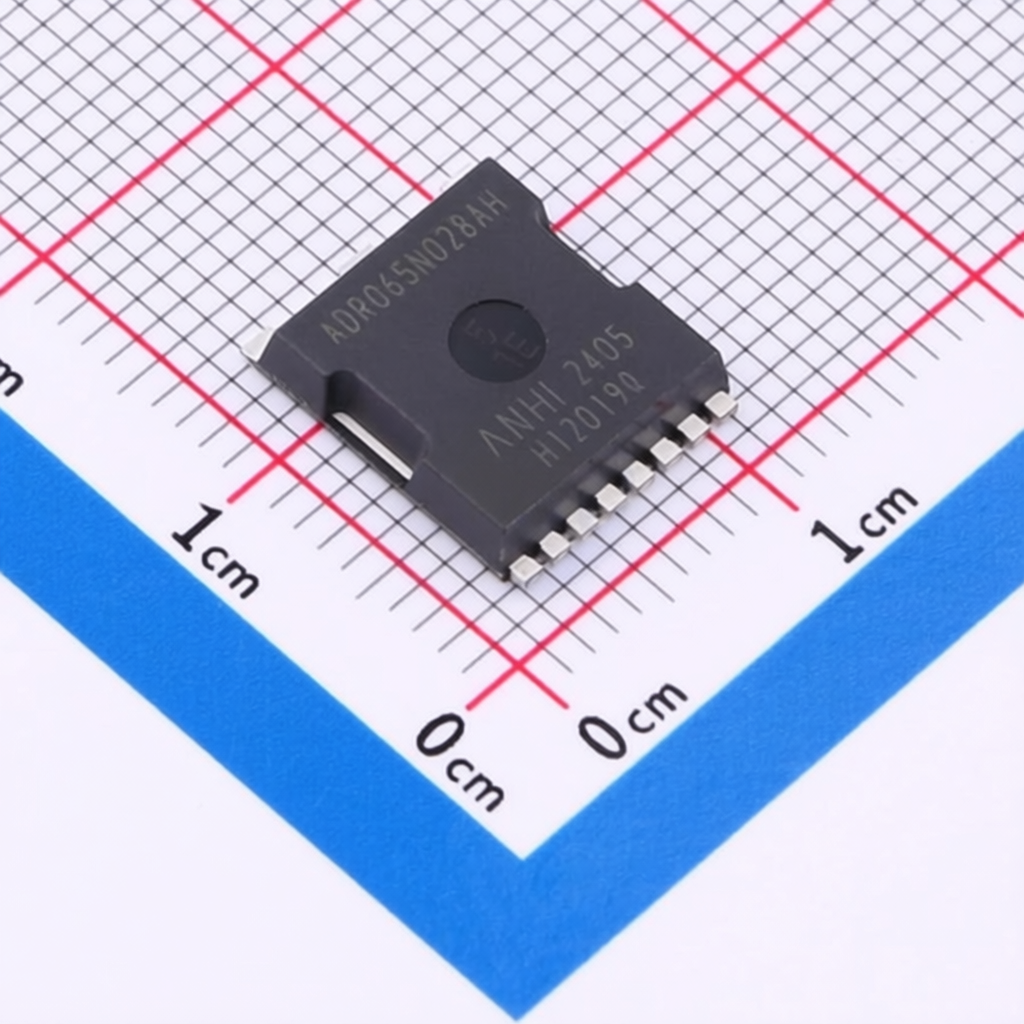

ANHI ADR065N028AH
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
ADR065N028AH
Package:
TOLL
Customer #:
Key Attributes:
650V N-Channel Silicon Carbide Power MOSFET
Description:
650V 80A 45mΩ 5V 294W TOLL Single FETs, MOSFETs RoHS
Datasheet:
ANHI ADR065N028AH
Products Specifications
Manufacturer:
Package:
TOLL
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+175℃
RDS(on):
45mΩ
Gate Threshold Voltage (Vgs(th)):
5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
12.9pF
Output Capacitance(Coss):
226.7pF
Input Capacitance(Ciss):
2.333nF
Pd - Power Dissipation:
294W
Gate Charge(Qg):
97.6nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
