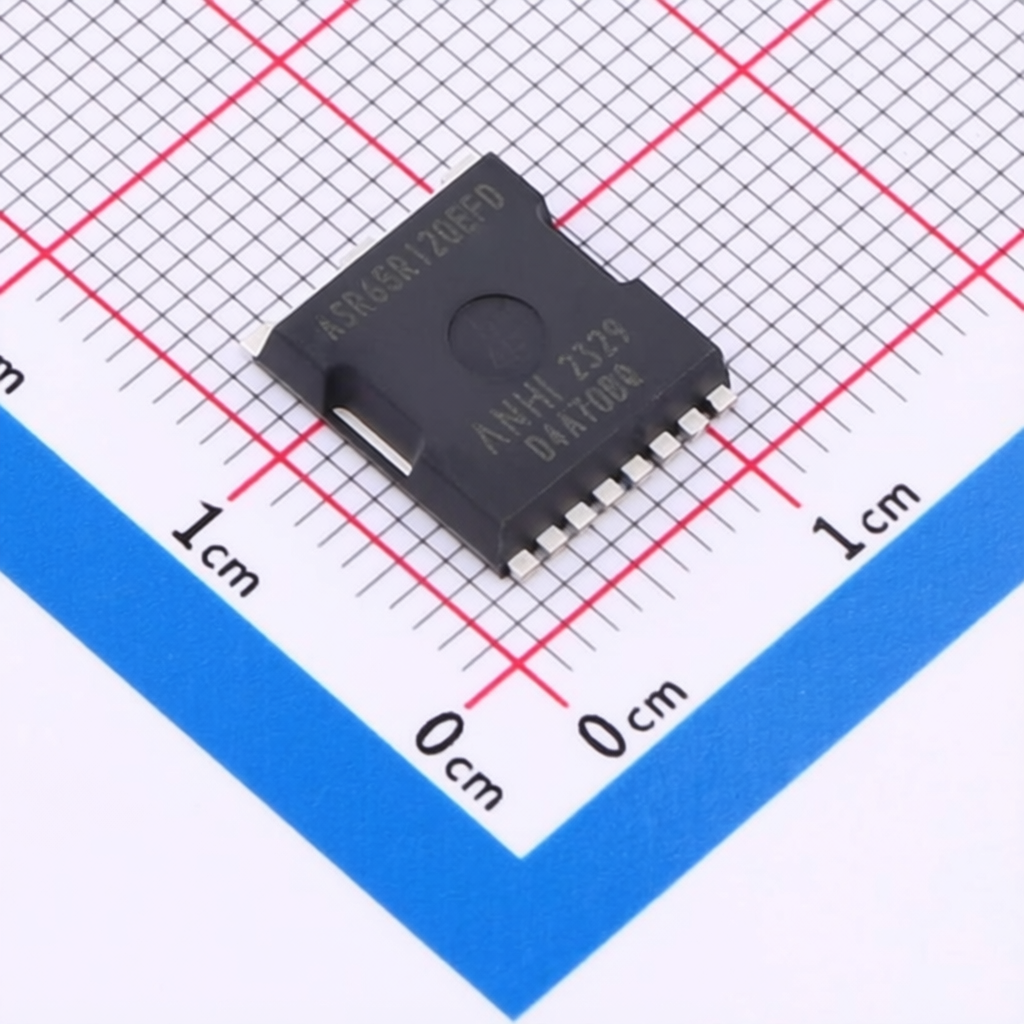

ANHI ASR65R120EFD
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
ASR65R120EFD
Package:
TOLL-8L
Customer #:
Key Attributes:
MOSFET N-CH 655V 30A TOLL-8L
Description:
N-Channel 655V 30A Surface Mount TOLL-8L
Datasheet:
ANHI ASR65R120EFD
Products Specifications
Manufacturer:
Package:
TOLL-8L
Drain to Source Voltage:
655V
Current - Continuous Drain(Id):
30A
RDS(on):
120mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
2pF
Output Capacitance(Coss):
89pF
Input Capacitance(Ciss):
2.657nF
Gate Charge(Qg):
55.4nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
