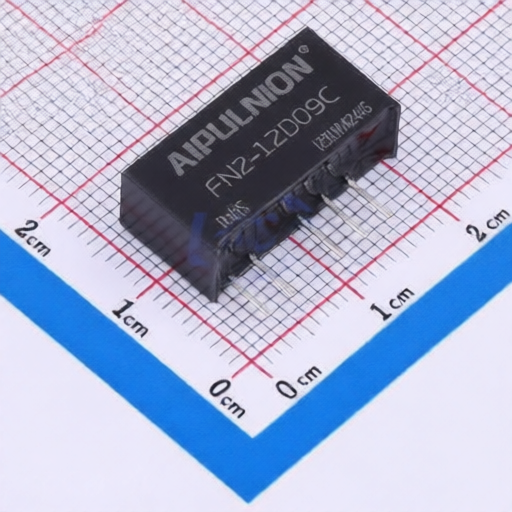

AIPULNION FN2-12D09C
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
FN2-12D09C
Package:
SIP,19.5x7mm
Customer #:
Description:
SIP,19.5x7mm DC DC Converters RoHS
Datasheet:
AIPULNION FN2-12D09C
Products Specifications
Manufacturer:
Package:
SIP,19.5x7mm
Number of Outputs:
2
Height:
10mm
Length:
19.5mm
Iout:
-110mA;110mA
Width:
7mm
Vin:
10.8V~13.2V
Vout:
±9V
Operating Temperature:
-40℃~+85℃
Quiescent Supply Current:
18mA
Isolation Voltage(Vrms):
1.5kV
Conversion Efficiency:
79%
Output Power:
2W
Capacitive Load(Max):
1000uF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
